Want to install Dance Maniax Update in your arcade cabinet? This PCB interfaces with an Arduino Mega to control light output. Arduino Mega is included in the cost as each unit is hand soldered and tested in the Psychic Drive DMX cabinet. The full kit includes a JAMMA adapter to make installation easier, it also measures the cabinets 5v and 12v output for troubleshooting. See www.psychicdrive.com/dmx for more info on the steps and additional hardware needed to run the game.

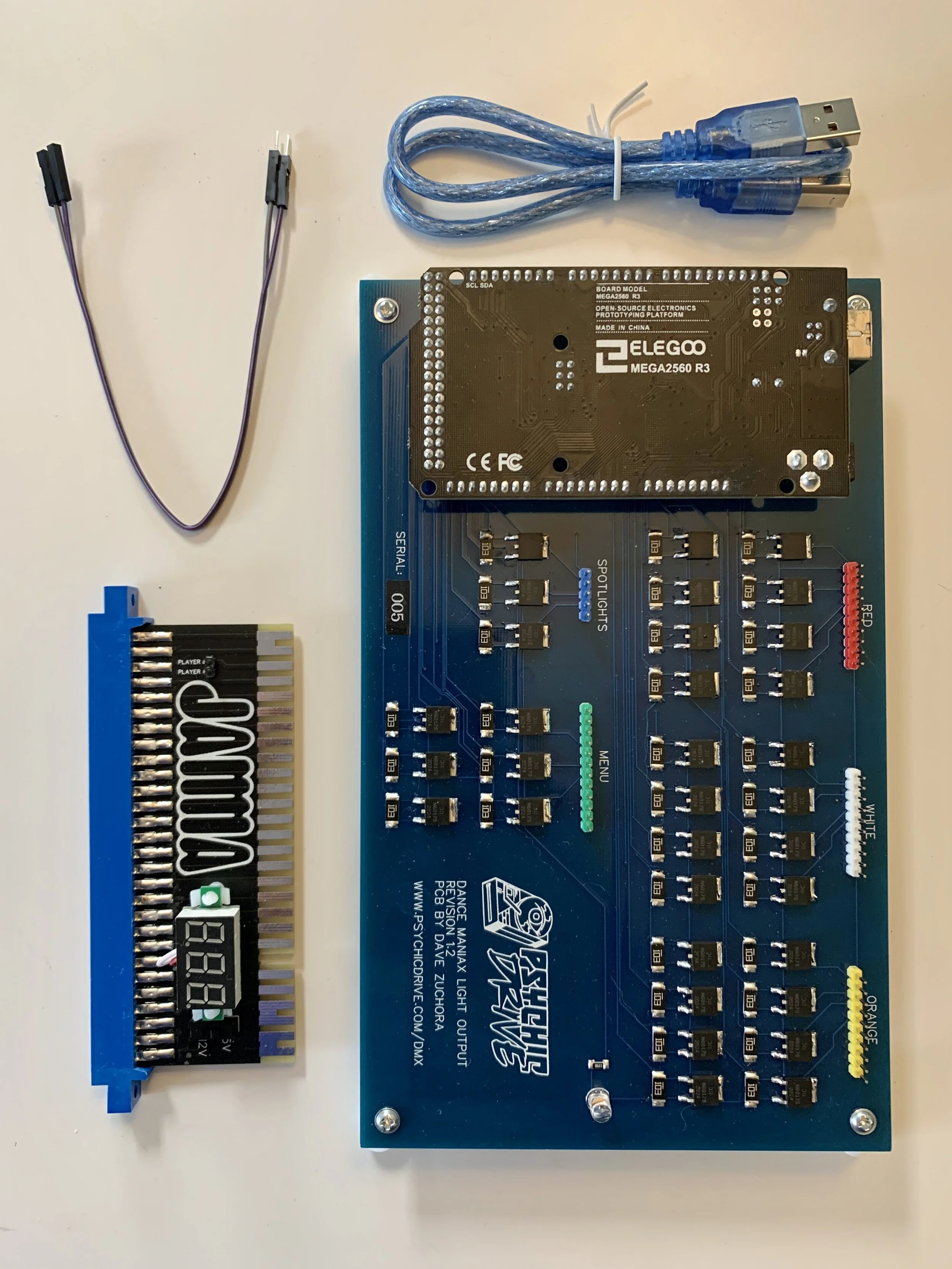

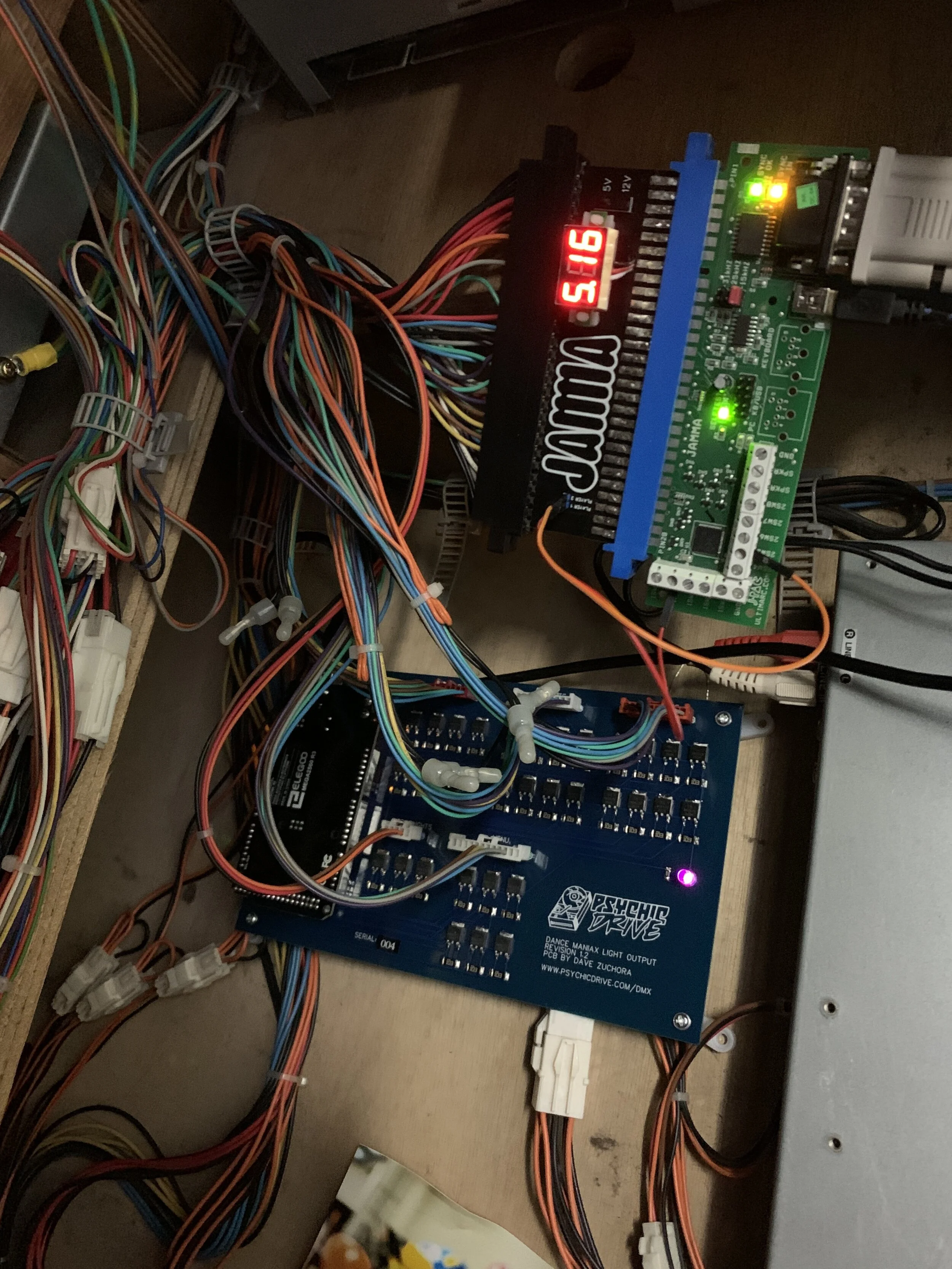

Note: The JAMMA adapter is optional but results in a much cleaner installation with no manual jumper wires on the JAMMA harness itself. Example photos include the JAMMA adapter.

Disclaimer: Know your cabinet! We are not responsible if the JAMMA connector is connected backwards which could result in damage to your JPAC. The JAMMA harness has a key to help identify the side that receives power.

*there is a 2 week lead time on this PCB as each unit will only be assembled once a new order arrives
